| void Impala::Core::Array::ColorSegmentation | ( | Array2dVec3UInt8 *& | dst, | |
| Array2dVec3Real64 * | im, | |||
| ColorSegmentationAlgorithm | segAlg, | |||
| ColorSegmentationInvariant | invariantType, | |||
| double | minRegionFraction, | |||
| double | threshold, | |||
| bool | useGauss = false, |
|||
| std::vector< Array2dVec3UInt8 * > * | dispList = 0 | |||
| ) | [inline] |
Definition at line 70 of file ColorSegmentation.h.
References ArrayListDelete(), ArrayListExport(), Impala::Core::Array::Array2dTem< StorT, elemSize, ArithT >::CH(), ColorGaborResponses(), ColorGaussResponses(), Impala::Core::Array::Array2dTem< StorT, elemSize, ArithT >::CPB(), Impala::Core::Array::Array2dTem< StorT, elemSize, ArithT >::CW(), extractRegions(), labelimg(), Impala::Core::Matrix::MatE(), Impala::Core::Matrix::MatFeatureNormalization(), Impala::Core::Matrix::MatKLM(), Impala::Core::Matrix::MatKMeans(), Impala::Core::Matrix::MatNrCol(), Impala::Core::Matrix::MatNrRow(), Impala::Core::Matrix::MatTranspose(), mergeRegions(), Impala::Core::Array::Array2dTem< StorT, elemSize, ArithT >::PB(), refinery(), relabel(), Impala::Core::Matrix::VecE(), and Impala::Core::Matrix::VecNrElem().
Referenced by Impala::Application::Im::DoColorSegmentation(), Impala::Application::Src::WindowSrc::HandleNewFrame(), and Impala::Core::Test::TestColorSegmentation::Run().
00076 { 00077 bool vv = false; 00078 if (vv) std::cout << "start ColorSegmentation" << std::endl; 00079 if (dst == 0) 00080 dst = ArrayCreate<Array2dVec3UInt8>(im->CW(), im->CH()); 00081 Timer timer(1); 00082 timer.Start(); 00083 std::vector<Array2dScalarReal64*> respList; 00084 if (useGauss) 00085 respList = ColorGaussResponses(im); 00086 else 00087 respList = ColorGaborResponses(im, segAlg, invariantType); 00088 //WriteRawList(respList, std::string("resp.raw"), true); 00089 00090 if (vv) std::cout << " making response matrix" << std::endl; 00091 00092 typedef Array2dScalarReal64 Mat; 00093 typedef VecScalarReal64 Vec; 00094 int nrFeat = respList.size(); 00095 int nrPixels = respList[0]->CW() * respList[0]->CH(); 00096 int nrPcaDim = 4; 00097 00098 double* data = ArrayListExport(respList); 00099 ArrayListDelete(&respList); 00100 00101 Mat* mTmp = MatCreate<Mat>(nrFeat, nrPixels, data); 00102 //WriteRaw(mTmp, "abc_feat.raw", true); 00103 Mat* m = MatTranspose(mTmp); 00104 delete mTmp; 00105 00106 if (vv) std::cout << "time: " << timer.SplitTime() << " PCA " << std::endl; 00107 // reduce to nrPcaDim dimensions with PCA (if necessary) 00108 if (MatNrCol(m) > nrPcaDim) 00109 { 00110 mTmp = MatKLM(m, nrPcaDim); 00111 delete m; 00112 m = mTmp; 00113 } 00114 00115 if (vv) std::cout << "time: " << timer.SplitTime() << " feature_normalization " << std::endl; 00116 // normalize 00117 MatFeatureNormalization(m); 00118 00119 if (vv) std::cout << "time: " << timer.SplitTime() << " kmeans " << std::endl; 00120 00121 // k-means 00122 int nrClusters = nrPixels/2500; 00123 Mat* clusters = MatCreate<Mat>(nrClusters, MatNrCol(m)); 00124 Vec* clusterMap = VecCreate<Vec>(nrPixels); 00125 VecScalarInt32* vectorsInC = VecCreate<VecScalarInt32>(nrClusters); 00126 int clustersFound; 00127 MatKMeans(m, clusters, clusterMap, 25, false, clustersFound, vectorsInC); 00128 delete clusters; 00129 if (vv) 00130 for (int i=0 ; i<nrClusters ; i++) 00131 { 00132 int nr = *VecE(vectorsInC, i); 00133 std::cout << "cluster " << i << " has " << nr//*VecE(vectorsInC, i) 00134 << " vectors" << std::endl; 00135 } 00136 delete vectorsInC; 00137 00138 // mMat is "wrapper" since Matrix dtor commented 00139 MatrixDouble mMat(MatNrRow(m), MatNrCol(m), MatE(m)); 00140 00141 VectorDouble clusterMapMat(VecNrElem(clusterMap), VecE(clusterMap), false); 00142 delete clusterMap; 00143 00144 if (vv) std::cout << "time: " << timer.SplitTime() << " Doing region stuff " << std::endl; 00145 if (dispList != 0) 00146 { 00147 Array2dVec3UInt8* dIm = ArrayCreate<Array2dVec3UInt8>(im->CW(), im->CH()); 00148 labelimg(dIm->PB(), clusterMapMat, im->CW(), im->CH()); 00149 dispList->push_back(dIm); 00150 } 00151 00152 // get the regions 00153 pixgroup *rg = new pixgroup[nrClusters]; 00154 extractRegions(rg, nrClusters, clusterMapMat, mMat); 00155 00156 // merge regions below threshold 00157 mergeRegions(rg, nrClusters, clusterMapMat, mMat, im->CW(), im->CH(), 00158 threshold) ; 00159 if (dispList != 0) 00160 { 00161 Array2dVec3UInt8* dIm = ArrayCreate<Array2dVec3UInt8>(im->CW(), im->CH()); 00162 labelimg(dIm->PB(), clusterMapMat, im->CW(), im->CH()); 00163 dispList->push_back(dIm); 00164 } 00165 00166 // UN-label region borders, and the image border 00167 // minRegionFraction indicates the minimal size of a region in a percentage 00168 relabel(clusterMapMat, im->CW(), im->CH(), rg, nrClusters, 3, 00169 nrPixels * minRegionFraction); 00170 if (dispList != 0) 00171 { 00172 Array2dVec3UInt8* dIm = ArrayCreate<Array2dVec3UInt8>(im->CW(), im->CH()); 00173 labelimg(dIm->PB(), clusterMapMat, im->CW(), im->CH()); 00174 dispList->push_back(dIm); 00175 } 00176 00177 // region growing 00178 refinery(clusterMapMat, mMat, rg, nrClusters, im->CW(), im->CH()); 00179 00180 // create colors for a region 00181 labelimg(dst->CPB(), clusterMapMat, im->CW(), im->CH()); 00182 00183 delete m; 00184 delete[] rg; 00185 if (vv) std::cout << "time: " << timer.SplitTime() << " Done " << std::endl; 00186 }

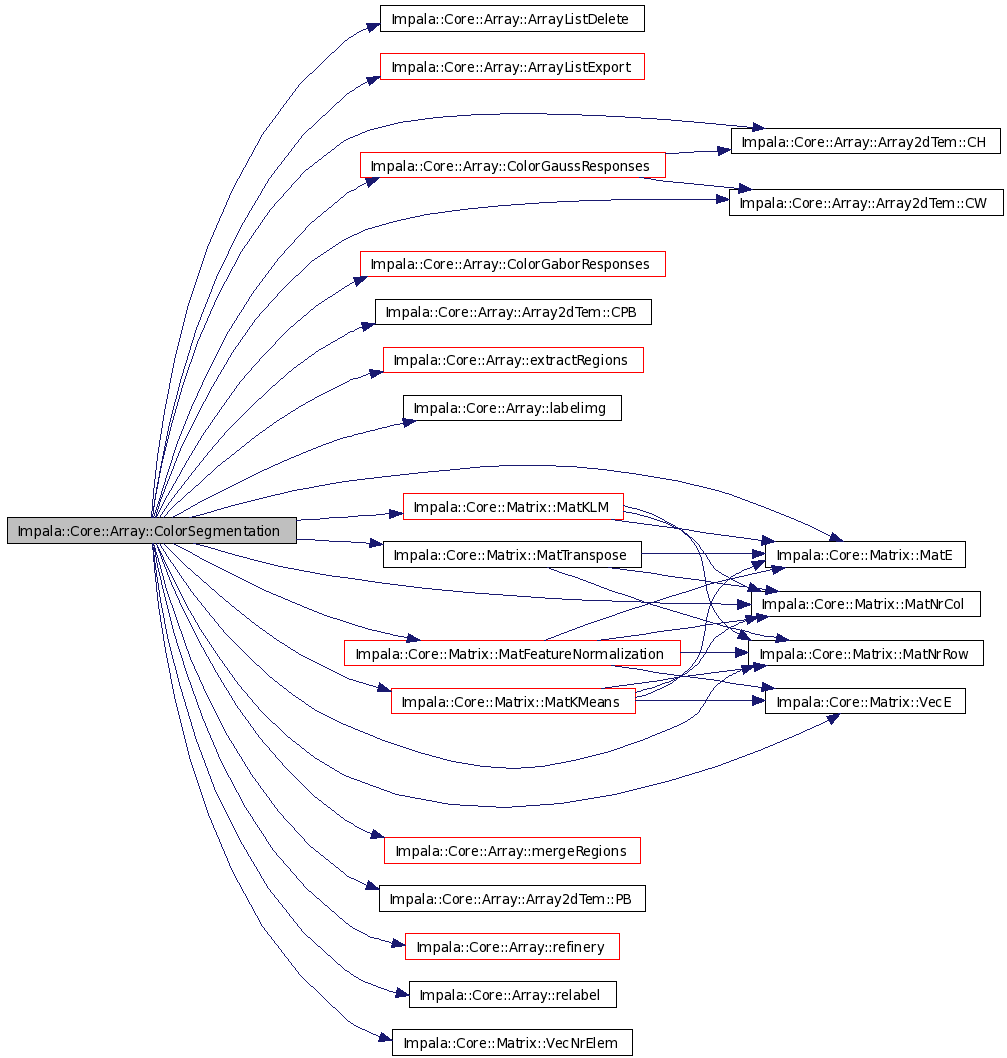

Here is the call graph for this function:
