| std::vector<Array2dScalarReal64*> Impala::Core::Array::InvQuasi | ( | Array2dVec3Real64 * | src, | |
| double | sigma, | |||
| double | precision | |||
| ) | [inline] |
input:
- rgb image Vec3Real64 format
- sigma of gaussian derivative
- precision of used kernel in gaussian derivative (2 or 3 are good values) output:
- specular quasi invariant
- specular quasi variant
- shadow-shading quasi invariant
- shadow-shading quasi invariant
- specular shadow-shading quasi invariant
- specular shadow-shading quasi variant
these are the images in Joost van de Weijers matlab code found on http://lear.inrialpes.fr/people/vandeweijer/research1 this code is a port of said matlab code
- Todo:
- perhaps this function should be split in 3 functions that compute the quasi invariant and variant for the three categories...
Definition at line 42 of file InvQuasi.h.
References Add(), AddSquared(), InvCompDer(), InvHsiDer(), InvOpponentDer(), InvSphericalDer(), and Sqrt().
Referenced by main().
00043 { 00044 std::vector<Array2dScalarReal64*> quasiInvariants; 00045 00046 // get needed Derivatives 00047 std::vector<Array2dScalarReal64*> rgbDerList = InvCompDer(src, sigma, precision); 00048 std::vector<Array2dScalarReal64*> opponentDerList = InvOpponentDer(rgbDerList); 00049 std::vector<Array2dScalarReal64*> sphericalDerList = InvSphericalDer(rgbDerList); 00050 std::vector<Array2dScalarReal64*> hsiDerList = InvHsiDer(rgbDerList); 00051 00052 //specular quasi invariant & variant 00053 //sp_inv=sqrt(O1_x.^2+O1_y.^2+O2_x.^2+O2_y.^2+eps); 00054 Array2dScalarReal64* temp = 0; 00055 Array2dScalarReal64* image = 0; 00056 AddSquared(image, opponentDerList[0], opponentDerList[1]); 00057 AddSquared(temp, opponentDerList[2], opponentDerList[3]); 00058 Add(image, image, temp); 00059 Sqrt(image, image); 00060 quasiInvariants.push_back(image); 00061 00062 //sp_var=sqrt(O3_x.^2+O3_y.^2+eps); 00063 temp = 0; 00064 image = 0; 00065 AddSquared(image, opponentDerList[4], opponentDerList[5]); 00066 Sqrt(image, image); 00067 quasiInvariants.push_back(image); 00068 00069 //shadow-shading quasi invariant & variant 00070 //ss_inv=sqrt(theta_x.^2+theta_y.^2+phi_x.^2+phi_y.^2+eps); 00071 temp = 0; 00072 image = 0; 00073 AddSquared(image, sphericalDerList[0], sphericalDerList[1]); 00074 AddSquared(temp, sphericalDerList[2], sphericalDerList[3]); 00075 Add(image, image, temp); 00076 Sqrt(image, image); 00077 quasiInvariants.push_back(image); 00078 00079 //ss_var=sqrt(r_x.^2+r_y.^2+eps); 00080 temp = 0; 00081 image = 0; 00082 AddSquared(image, sphericalDerList[4], sphericalDerList[5]); 00083 Sqrt(image, image); 00084 quasiInvariants.push_back(image); 00085 00086 //specular shadow-shading quasi invariant & variant 00087 //spss_inv=sqrt(h_x.^2+h_y.^2+eps); 00088 temp = 0; 00089 image = 0; 00090 AddSquared(image, hsiDerList[0], hsiDerList[1]); 00091 Sqrt(image, image); 00092 quasiInvariants.push_back(image); 00093 00094 //spss_var=sqrt(i_x.^2+i_y.^2+s_x.^2+s_y.^2+eps); 00095 temp = 0; 00096 image = 0; 00097 AddSquared(image, hsiDerList[2], hsiDerList[3]); 00098 AddSquared(temp, hsiDerList[4], hsiDerList[5]); 00099 Add(image, image, temp); 00100 Sqrt(image, image); 00101 quasiInvariants.push_back(image); 00102 00103 int i; 00104 for(i=0 ; i<rgbDerList.size() ; ++i) 00105 delete rgbDerList[i]; 00106 for(i=0 ; i<opponentDerList.size() ; ++i) 00107 delete opponentDerList[i]; 00108 for(i=0 ; i<sphericalDerList.size() ; ++i) 00109 delete sphericalDerList[i]; 00110 for(i=0 ; i<hsiDerList.size() ; ++i) 00111 delete hsiDerList[i]; 00112 00113 return quasiInvariants; 00114 }

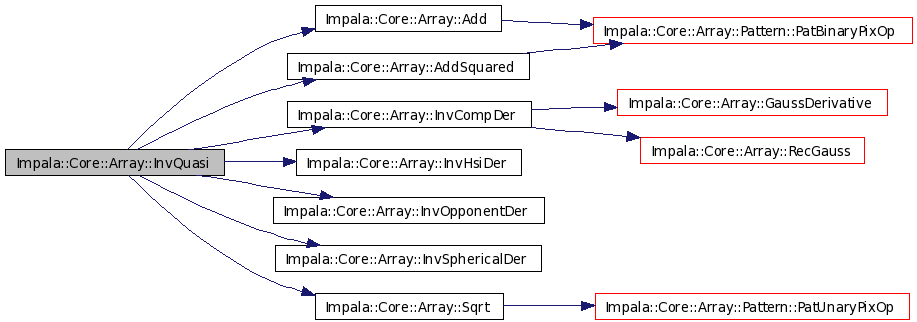

Here is the call graph for this function:
