| void Impala::Core::Array::refinery | ( | VectorDouble & | clusterMap, | |
| MatrixDouble & | m, | |||
| pixgroup * | rg, | |||
| int | nrClusters, | |||
| int | width, | |||
| int | height | |||
| ) |
Definition at line 551 of file ColorSegmentation.h.
References BORDER, Impala::Core::Array::pixgroup::cov, Impala::Core::Matrix::MatrixTem< C >::covariance(), Impala::Core::Matrix::MatrixTem< C >::getRow(), Impala::Core::Array::pixgroup::idx, Impala::Core::Array::pixgroup::m, Impala::Core::Matrix::MatrixTem< C >::nCol(), Impala::Core::Array::pixgroup::nrPixInGroup, PROCESSED, UNLABELED, and updateMean().
Referenced by ColorSegmentation().
00553 { 00554 00555 // printf("refinery") ; 00556 int imsize = width*height; 00557 int i; 00558 int x,y,k; 00559 int d[4] = {1, -width, -1, width}; 00560 VectorDouble pixstate(imsize); 00561 00562 VectorDouble vec(m.nCol()); 00563 double val ; 00564 std::list<long> boundarylist; 00565 std::list<long> *mylist = new std::list<long>[imsize]; 00566 00567 //now initialize for region growing 00568 for (i=0; i<nrClusters; i++) rg[i].nrPixInGroup = 0; 00569 00570 for (i=0; i<width; i++) pixstate[i] = BORDER; //over the border 00571 00572 for (y=1; y<height-1; y++) 00573 { 00574 pixstate[i++] = BORDER; 00575 for (x=1; x<width-1; x++) 00576 { 00577 if (clusterMap[i]!=UNLABELED) 00578 { 00579 int l = clusterMap[i]; 00580 long n = rg[l].nrPixInGroup; 00581 rg[l].idx[n] = i; //add pixel's index 00582 rg[l].nrPixInGroup++; 00583 pixstate[i] = PROCESSED; 00584 } 00585 else //check adjacency (just on boundary or not) 00586 { 00587 int adjflag = 0; 00588 for (int u=0; u<4; u++) if (clusterMap[i+d[u]]!=UNLABELED) 00589 { 00590 boundarylist.push_back(i); //store the boundary pixel 00591 pixstate[i] = clusterMap[i+d[u]]; 00592 adjflag = 1; 00593 break; 00594 } 00595 if (!adjflag) pixstate[i] = UNLABELED; 00596 } 00597 i++; 00598 } 00599 pixstate[i++] = BORDER; 00600 } 00601 for (;i<imsize; i++) pixstate[i] = BORDER; 00602 00603 for (i=0; i<nrClusters; i++) 00604 { 00605 rg[i].label = i; 00606 00607 MatrixDouble rgPixMatrix(rg[i].nrPixInGroup,m.nCol()); 00608 for(int j=0;j<rg[i].nrPixInGroup;j++) 00609 rgPixMatrix.setRow(j, m.getRow(rg[i].idx[j]) ) ; 00610 00611 VectorDouble means ; 00612 rg[i].cov = rgPixMatrix.covariance(means) ; 00613 rg[i].m = means ; 00614 00615 } 00616 00617 //now initialize for region growing 00618 int counter=0 ; 00619 while(!boundarylist.empty()) 00620 { 00621 i = boundarylist.front(); 00622 00623 boundarylist.pop_front(); 00624 clusterMap[i] = pixstate[i]; 00625 00626 int l = clusterMap[i]; 00627 for (k=0; k<m.nCol(); k++) { 00628 vec[k] = rg[l].m[k] - m[i][k]; //mean[l]-this pix i 00629 00630 } 00631 val = vec * vec ; 00632 int b = (int)(val*200); //scale 00633 if (b>=imsize) b=imsize-1; 00634 mylist[b].push_back(i); 00635 counter++; 00636 } 00637 //now grow the regions 00638 int nmin = 0; 00639 while (1) 00640 { 00641 for (; nmin<imsize && mylist[nmin].empty();nmin++); 00642 if (nmin==imsize) break; //done 00643 00644 while(!mylist[nmin].empty()) 00645 { 00646 i = mylist[nmin].front(); 00647 mylist[nmin].pop_front(); 00648 clusterMap[i] = pixstate[i]; 00649 pixstate[i] = PROCESSED; 00650 //update region 00651 int l = clusterMap[i]; //i is added to region clusterMap[i] 00652 rg[l].idx[rg[l].nrPixInGroup] = i; //add pixel; 00653 rg[l].nrPixInGroup++; 00654 updateMean(m, rg[l],i); 00655 for (int u=0; u<4; u++) if (pixstate[i+d[u]]==UNLABELED) //extended 00656 { 00657 int newid = i + d[u]; 00658 for (k=0; k<m.nCol(); k++) { 00659 vec[k] = rg[l].m[k] - m[newid][k]; //mean[l]-this pix i 00660 } 00661 00662 val = vec * vec ; 00663 int b = (int)(val*200); 00664 if (b>=imsize) b=imsize-1; 00665 mylist[b].push_back(newid); 00666 pixstate[newid] = clusterMap[i]; 00667 if (b<nmin) nmin = b; 00668 } 00669 } //while 00670 } 00671 00672 delete[] mylist; 00673 00674 }

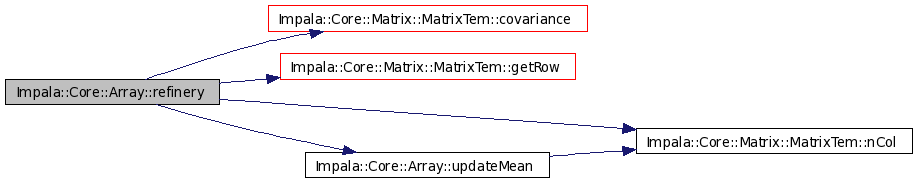

Here is the call graph for this function:
