ScribbleFigure Class Reference

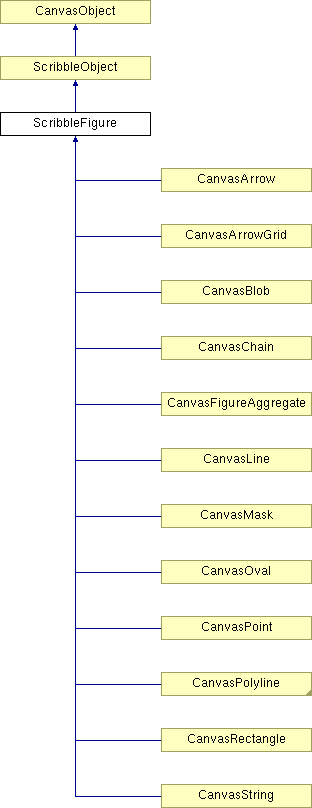

Inheritance diagram for ScribbleFigure::

List of all members.

Public Methods
void	addPoint (double x, double y)
boolean	removePoint (int index)
boolean	removeLastPoint ()
boolean	hasNoColor ()
Color	getColor ()
void	setColor (Color newColor)
boolean	getStroke ()
void	setStroke (boolean stroke)
boolean	hasLineWidth ()
float	getLineWidth ()
void	setLineWidth (float linew)
float	getTransparency ()
void	setTransparency (float trans)
boolean	isComplex ()
boolean	isResizeable ()
Vector	getVisualChangeMethods ()
	Builds up a list of functions that are to fill a menu for changing the visualization aspects of an object. More...
	ScribbleFigure (int x, int y, int w, int h, int mode, Color color, double ccs_scale)
	ScribbleFigure (int x, int y, int w, int h, int mode, Color color, boolean complex, double ccs_scale)
int	changePoint (int index, int x, int y)
void	addPoint (int x, int y)
Static Public Attributes
final Color	NO_COLOR = (Color)null
final Color	DEF_COLOR = Color.red
final float	DEF_LINEW = 1.0f
final float	DEF_TRANS = 1.0f
Protected Methods
void	initFigure (Color color, boolean stroke, float linew, float trans, boolean complex)
void	setupDrawMode (Graphics g)
	Setup drawmode for 'g'. More...
void	setComplex (boolean complex)
Protected Attributes
boolean	complex = false
boolean	resizeable = true
boolean	strokeSet = false
boolean	hasLineWidth = true
boolean	hasNoColor = true
Color	drawColor = NO_COLOR
float	lineWidth = DEF_LINEW
float	transparency = DEF_TRANS

---

Constructor & Destructor Documentation

ScribbleFigure::ScribbleFigure (  int    x, int    y, int    w, int    h, int    mode, Color    color, double    ccs_scale )  [inline]

ScribbleFigure::ScribbleFigure (  int    x, int    y, int    w, int    h, int    mode, Color    color, boolean    complex, double    ccs_scale )  [inline]

---

Member Function Documentation

void ScribbleFigure::addPoint (  double    x, double    y )  [inline]

Reimplemented in CanvasPolyline.

boolean ScribbleFigure::removePoint (  int    index )  [inline]

Reimplemented in CanvasColoredPolyline, and CanvasPolyline.

boolean ScribbleFigure::removeLastPoint (    )  [inline]

Reimplemented in CanvasPolyline.

boolean ScribbleFigure::hasNoColor (    )  [inline]

Color ScribbleFigure::getColor (    )  [inline]

void ScribbleFigure::setColor (  Color    newColor )  [inline]

Reimplemented in CanvasBlob, CanvasChain, CanvasColoredPolyline, CanvasFigureAggregate, and CanvasMask.

boolean ScribbleFigure::getStroke (    )  [inline]

void ScribbleFigure::setStroke (  boolean    stroke )  [inline]

Reimplemented in CanvasFigureAggregate.

boolean ScribbleFigure::hasLineWidth (    )  [inline]

float ScribbleFigure::getLineWidth (    )  [inline]

void ScribbleFigure::setLineWidth (  float    linew )  [inline]

Reimplemented in CanvasFigureAggregate.

float ScribbleFigure::getTransparency (    )  [inline]

void ScribbleFigure::setTransparency (  float    trans )  [inline]

Reimplemented in CanvasBlob, CanvasFigureAggregate, and CanvasMask.

boolean ScribbleFigure::isComplex (    )  [inline]

boolean ScribbleFigure::isResizeable (    )  [inline]

Vector ScribbleFigure::getVisualChangeMethods (    )  [inline]

Builds up a list of functions that are to fill a menu for changing the visualization aspects of an object. Classes derived from this one typically add their class-specific methods to their parents' methods by first calling the parent to fill the vector and then add their own. The result is a Vector of CallableMethods. Reimplemented from CanvasObject. Reimplemented in CanvasArrow, CanvasBlob, and CanvasPolyline.

int ScribbleFigure::changePoint (  int    index, int    x, int    y )  [inline]

Reimplemented in CanvasArrow, CanvasBlob, CanvasChain, CanvasLine, CanvasMask, CanvasOval, CanvasPolyline, and CanvasRectangle.

void ScribbleFigure::addPoint (  int    x, int    y )  [inline]

Reimplemented in CanvasPolyline.

void ScribbleFigure::initFigure (  Color    color, boolean    stroke, float    linew, float    trans, boolean    complex )  [inline, protected]

void ScribbleFigure::setupDrawMode (  Graphics    g )  [inline, protected]

Setup drawmode for 'g'. Reimplemented from CanvasObject.

void ScribbleFigure::setComplex (  boolean    complex )  [inline, protected]

---

Member Data Documentation

final Color ScribbleFigure::NO_COLOR = (Color)null [static]

final Color ScribbleFigure::DEF_COLOR = Color.red [static]

final float ScribbleFigure::DEF_LINEW = 1.0f [static]

final float ScribbleFigure::DEF_TRANS = 1.0f [static]

boolean ScribbleFigure::complex = false [protected]

boolean ScribbleFigure::resizeable = true [protected]

boolean ScribbleFigure::strokeSet = false [protected]

boolean ScribbleFigure::hasLineWidth = true [protected]

boolean ScribbleFigure::hasNoColor = true [protected]

Color ScribbleFigure::drawColor = NO_COLOR [protected]

float ScribbleFigure::lineWidth = DEF_LINEW [protected]

float ScribbleFigure::transparency = DEF_TRANS [protected]

---

The documentation for this class was generated from the following file:

• ScribbleFigure.java

---
