CanvasFigure Class Reference

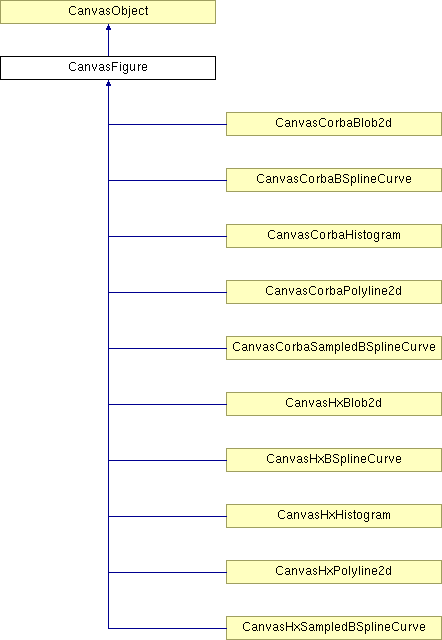

Inheritance diagram for CanvasFigure::

List of all members.

Public Methods
Object	clone ()
	Implements CanvasObject abstract function. More...
void	draw (Graphics g)
	Implements CanvasObject "interface". More...
boolean	isHitCcs (int x, int y, Graphics2D g)
	A more specialized version of isHitCcs that uses the Graphics2d.hit and the getShape() member function to determine if this figures is selected with the given position. More...
boolean	hasNoColor ()
Color	getColor ()
void	setColor (Color newColor)
boolean	getFilled ()
void	setFilled (boolean filled)
boolean	getDashed ()
void	setDashed (boolean dashed)
boolean	hasLineWidth ()
float	getLineWidth ()
void	setLineWidth (float linew)
float	getTransparency ()
void	setTransparency (float trans)
Vector	getVisualChangeMethods ()
	Builds up a list of functions that are to fill a menu for changing the visualization aspects of an object. More...
Static Public Attributes
final int	NO_PIX = 0x00000000
	Indicates that no pixel value is set. More...
final int	INV_PIX = 0x00FFFFFF
	Invert pixel via : c.getRGB() ^ INV_COLOR. More...
final Color	NO_COLOR = (Color) null
	No color specified. More...
final Color	DEF_COLOR = Color.red
	The default color for drawing figures. More...
final float	DEF_LINEW = 1.0f
	The default line width for figures. More...
final float	DEF_TRANS = 0.0f
	The default transparency for figures. More...
Protected Methods
	CanvasFigure (double x1, double y1, double x2, double y2)
abstract Shape	getShape ()
	Derived classes have to implement this method to supply the shape that represents the CanvasFigures. More...
abstract boolean	hitOnStroke ()
	Derived classes have to implement this method to indicate whether they are selected (hit) based on their stroke (border) or on their interior. More...
void	setupDrawMode (Graphics g)
	Setup drawmode for 'g'. More...

---

Constructor & Destructor Documentation

CanvasFigure::CanvasFigure (  double    x1, double    y1, double    x2, double    y2 )  [inline, protected]

---

Member Function Documentation

Object CanvasFigure::clone (    )  [inline, virtual]

Implements CanvasObject abstract function. This side of the tree is not clonable, nor need it be? Reimplemented from CanvasObject.

void CanvasFigure::draw (  Graphics    g )  [inline, virtual]

Implements CanvasObject "interface". Reimplemented from CanvasObject. Reimplemented in CanvasHxBlob2d, and CanvasCorbaBlob2d.

boolean CanvasFigure::isHitCcs (  int    x, int    y, Graphics2D    g )  [inline]

A more specialized version of isHitCcs that uses the Graphics2d.hit and the getShape() member function to determine if this figures is selected with the given position. Uses hitOnStroke to choose between hit on stroke or hit on interior. Reimplemented from CanvasObject.

boolean CanvasFigure::hasNoColor (    )  [inline]

Color CanvasFigure::getColor (    )  [inline]

void CanvasFigure::setColor (  Color    color )  [inline]

Reimplemented in CanvasHxBlob2d, and CanvasCorbaBlob2d.

boolean CanvasFigure::getFilled (    )  [inline]

void CanvasFigure::setFilled (  boolean    filled )  [inline]

boolean CanvasFigure::getDashed (    )  [inline]

void CanvasFigure::setDashed (  boolean    dashed )  [inline]

boolean CanvasFigure::hasLineWidth (    )  [inline]

float CanvasFigure::getLineWidth (    )  [inline]

void CanvasFigure::setLineWidth (  float    linew )  [inline]

float CanvasFigure::getTransparency (    )  [inline]

void CanvasFigure::setTransparency (  float    trans )  [inline]

Reimplemented in CanvasHxBlob2d, and CanvasCorbaBlob2d.

Vector CanvasFigure::getVisualChangeMethods (    )  [inline]

Builds up a list of functions that are to fill a menu for changing the visualization aspects of an object. Classes derived from this one typically add their class-specific methods to their parents' methods by first calling the parent to fill the vector and then add their own. The result is a Vector of CallableMethods. Reimplemented from CanvasObject. Reimplemented in CanvasHxBlob2d, CanvasHxBSplineCurve, CanvasHxSampledBSplineCurve, CanvasCorbaBlob2d, CanvasCorbaBSplineCurve, and CanvasCorbaSampledBSplineCurve.

abstract Shape CanvasFigure::getShape (    )  [protected, pure virtual]

Derived classes have to implement this method to supply the shape that represents the CanvasFigures. It is used to draw to figure as well as determine which figure is selected (hit) by the cursor within a canvas. Reimplemented in CanvasHxBlob2d, CanvasHxBSplineCurve, CanvasHxHistogram, CanvasHxPolyline2d, CanvasHxSampledBSplineCurve, CanvasCorbaBlob2d, CanvasCorbaBSplineCurve, CanvasCorbaHistogram, CanvasCorbaPolyline2d, and CanvasCorbaSampledBSplineCurve.

abstract boolean CanvasFigure::hitOnStroke (    )  [protected, pure virtual]

Derived classes have to implement this method to indicate whether they are selected (hit) based on their stroke (border) or on their interior. Reimplemented in CanvasHxBlob2d, CanvasHxBSplineCurve, CanvasHxHistogram, CanvasHxPolyline2d, CanvasHxSampledBSplineCurve, CanvasCorbaBlob2d, CanvasCorbaBSplineCurve, CanvasCorbaHistogram, CanvasCorbaPolyline2d, and CanvasCorbaSampledBSplineCurve.

void CanvasFigure::setupDrawMode (  Graphics    g )  [inline, protected]

Setup drawmode for 'g'. Reimplemented from CanvasObject.

---

Member Data Documentation

final int CanvasFigure::NO_PIX = 0x00000000 [static]

Indicates that no pixel value is set.

final int CanvasFigure::INV_PIX = 0x00FFFFFF [static]

Invert pixel via : c.getRGB() ^ INV_COLOR.

final Color CanvasFigure::NO_COLOR = (Color) null [static]

No color specified.

final Color CanvasFigure::DEF_COLOR = Color.red [static]

The default color for drawing figures.

final float CanvasFigure::DEF_LINEW = 1.0f [static]

The default line width for figures.

final float CanvasFigure::DEF_TRANS = 0.0f [static]

The default transparency for figures.

---

The documentation for this class was generated from the following file:

• CanvasFigure.java

---
