| virtual void Impala::Core::VideoSet::KfrMotionExtractor::HandleNewFrame | ( | VideoSet * | vs, | |
| int | fileId, | |||
| Stream::RgbDataSrc * | src | |||
| ) | [inline, virtual] |
Arrived at a new frame in a "normal" walk.
Reimplemented from Impala::Core::VideoSet::Listener.
Definition at line 108 of file KfrMotionExtractor.h.
References Impala::Core::Table::TableTem< Col1T, Col2T, Col3T, Col4T, Col5T, Col6T, Col7T, Col8T, Col9T >::Add(), Impala::Core::Array::Array2dTem< StorT, elemSize, ArithT >::BH(), Impala::Core::Array::Array2dTem< StorT, elemSize, ArithT >::BW(), BYTE, CalcMotionVectors(), CalcTPLMean(), ComputeEnergy(), Impala::Core::Array::Array2dTem< StorT, elemSize, ArithT >::CPB(), Impala::Core::Stream::RgbDataSrc::DataPtr(), DumpMVF(), DumpWeightMatrix(), Impala::Core::Stream::RgbDataSrc::FrameHeight(), Impala::Core::Stream::RgbDataSrc::FrameNr(), Impala::Core::Stream::RgbDataSrc::FrameWidth(), ILOG_DEBUG, ILOG_ERROR, LoadEnergyTemplate(), m_Buffer, m_EnergyBuffer, m_EnergyMap, m_MVseq, m_verbose, m_verbose2, m_Weight, mHistogramTable, MVBLOCKSIZE, Impala::Core::Array::RGB2Gray(), Impala::Core::Feature::Bitmap::SaveRgb2BitmapFile(), and TPL_NUM.
00109 { 00110 if (!src) 00111 { 00112 ILOG_ERROR("Not a valid source for fileId " << fileId); 00113 return; 00114 } 00115 00116 Array::Array2dVec3UInt8* im = Array::ArrayCreate<Array::Array2dVec3UInt8> 00117 (src->FrameWidth(), src->FrameHeight(), 0, 0, src->DataPtr(), true); 00118 if (!im) 00119 { 00120 ILOG_ERROR("Couldn't load image for fileId " << fileId); 00121 return; 00122 } 00123 00124 if (m_verbose) 00125 { 00126 std::cout << "Current Frame No. = " << src->FrameNr() << std::endl; 00127 } 00128 00129 #ifdef __BITMAP_FUNC__ 00130 Core::Feature::Bitmap bitmap; 00131 bitmap.SaveRgb2BitmapFile("test_rgb_00.bmp",src->DataPtr(), src->FrameWidth(), src->FrameHeight() ); 00132 #endif 00133 00134 /*VectorReal64 histogram = ComputeHistogram(im); 00135 Quid quid = vs->GetQuidFrame(fileId, src->FrameNr()); 00136 mHistogramTable->Add(quid, histogram);*/ 00137 00138 double feature[2*TPL_NUM]; 00139 memset(feature,0,sizeof(double)*2*TPL_NUM); 00140 00141 // For temporal filtering use something like this instead: 00142 // (requires --srcWindow "size;5;rgb2ooo") 00143 typedef Stream::RgbDataSrcWindow<Stream::WindowPrepRgb2Ooo> WindowType; 00144 //WindowType* window = dynamic_cast<WindowType*>(src); 00145 WindowType* window = (WindowType*)src; 00146 if (window) 00147 { 00148 if (m_verbose) 00149 { 00150 std::cout << "window size = " << window->WindowSize() << std::endl; 00151 } 00152 00153 //Array::Array2dScalarReal64* tGauss = 0; 00154 //double temporalSigma = 0.75; 00155 //tGauss = Array::MakeGaussian1d(temporalSigma, 0, 3.0, 100); 00156 //Array::Array2dVec3Real64* res = 0; 00157 //SeqConvKernel(res, window, tGauss); 00159 //Array::Array2dVec3UInt8* src; 00160 //Array::InvWiccest(res, src, false, false, 0.75, 3, true); 00161 00162 00163 // test looping for all frames within the window 00164 //for (int i=0 ; i<window->WindowSize(); i++) 00165 //{ 00166 // Array::Array2dVec3UInt8* cur = Array::ArrayCreate<Array::Array2dVec3UInt8> 00167 // (window->FrameWidth(), window->FrameHeight(), 0, 0, window->DataPtrWindow(i), true); 00168 // if (!cur) 00169 // { 00170 // ILOG_ERROR("Couldn't load image for fileId " << fileId); 00171 // return; 00172 // } 00173 00174 // VectorReal64 cur_histogram = ComputeHistogram(cur); 00175 // Quid quid = vs->GetQuidFrame(fileId, window->FrameNr() - window->WindowSize()/2 + i); 00176 // mHistogramTable->Add(quid, cur_histogram); 00177 //} 00178 00179 00180 int bWidth = window->FrameWidth()/MVBLOCKSIZE; 00181 int bHeight = window->FrameHeight()/MVBLOCKSIZE; 00182 00183 // Note: we have tested these pairs: (10,7) (7,10) (10,8) (8,10) (22,18) (20,15) 00184 //int bWidth = 10; 00185 //int bHeight = 7; 00186 00187 for (int t=0;t<TPL_NUM;t++) 00188 { 00189 m_Weight[t] = new double[bWidth * bHeight]; 00190 memset(m_Weight[t], 0, sizeof(double)* bWidth * bHeight); 00191 00192 if (m_verbose2) 00193 { 00194 DumpWeightMatrix(m_Weight[t], bWidth, bHeight, t); 00195 } 00196 } 00197 00198 m_EnergyBuffer = new BYTE[bWidth * bHeight]; 00199 m_EnergyMap = new double[bWidth * bHeight]; 00200 m_Buffer = new BYTE[bWidth * bHeight * 2]; 00201 00202 // Initialization 00203 LoadEnergyTemplate(bWidth, bHeight); 00204 00205 // calculate the mean of weight for all templates 00206 CalcTPLMean(bWidth, bHeight); 00207 00208 m_MVseq = new BYTE[bWidth * bHeight * 2 * (window->WindowSize()-1)]; 00209 memset(m_MVseq, 0, sizeof(BYTE)*bWidth * bHeight * 2 * (window->WindowSize()-1) ); 00210 //DumpMVFseq(m_MVseq, bWidth, bHeight, window->WindowSize()-1); 00211 00212 // compute motion features between adjacent frames 00213 // if window size as 9: 0-1,1-2,2-3,3-4,4-5,5-6,6-7,7-8,8-9 00214 // based on these motion vectors field, we compute the energy distribution 00215 for (int i=1 ; i<window->WindowSize() ; i++) 00216 { 00217 // previous frame: pre 00218 Array::Array2dVec3UInt8* pre_rgb = Array::ArrayCreate<Array::Array2dVec3UInt8> 00219 (window->FrameWidth(), window->FrameHeight(), 0, 0, window->DataPtrWindow(i-1), true); 00220 if (!pre_rgb) 00221 { 00222 ILOG_ERROR("Couldn't load image for fileId " << fileId); 00223 return; 00224 } 00225 00226 // current frame: cur 00227 Array::Array2dVec3UInt8* cur_rgb = Array::ArrayCreate<Array::Array2dVec3UInt8> 00228 (window->FrameWidth(), window->FrameHeight(), 0, 0, window->DataPtrWindow(i), true); 00229 if (!cur_rgb) 00230 { 00231 ILOG_ERROR("Couldn't load image for fileId " << fileId); 00232 return; 00233 } 00234 00235 #ifdef __BITMAP_FUNC__ 00236 //Core::Feature::Bitmap bitmap; 00237 //bitmap.SaveRgb2BitmapFile("test_rgb_0.bmp",cur_rgb->CPB(), cur_rgb->CW(), cur_rgb->CH() ); 00238 #endif 00239 //Array2dScalarReal64* pre = 0; 00240 //Array2dScalarReal64* cur = 0; 00241 Array::Array2dScalarUInt8* pre = 0; 00242 Array::Array2dScalarUInt8* cur = 0; 00243 RGB2Gray(pre,pre_rgb); 00244 RGB2Gray(cur,cur_rgb); 00245 00246 // motion vector computing between (pre,cur) 00247 Int64 body = pre->BW() + pre->BH(); 00248 00249 #ifdef __BITMAP_FUNC__ 00250 //Core::Feature::Bitmap bitmap; 00251 //bitmap.SaveGray2BitmapFile("test_gray_0.bmp",cur->CPB(), cur->CW(), cur->CH() ); 00252 #endif 00253 CalcMotionVectors((unsigned char*)pre->CPB(),(unsigned char*)cur->CPB(),window->FrameWidth(),window->FrameHeight(),m_MVseq, i-1); 00254 00255 if (m_verbose2) DumpMVF(m_MVseq, bWidth, bHeight, i-1); 00256 00257 // DO remember: release the memory 00258 delete pre_rgb; 00259 delete cur_rgb; 00260 delete pre; 00261 delete cur; 00262 00263 } 00264 //DumpMVFseq(m_MVseq, bWidth, bHeight, window->WindowSize()-1); 00265 00266 // ----------------------------------------------------- 00267 // #frame within the window: window->WindowSize() 00268 // Motion Vector Field: window->WindowSize() - 1 00269 // Energy Distribution Curve: window->WindowSize() - 2 00270 // ----------------------------------------------------- 00271 00272 // compute energy based on weighted templates 00273 // using a sliding buffer within a window 00274 int result = ComputeEnergy(window->WindowSize()-1, bWidth, bHeight, m_MVseq, feature); 00275 00276 if (0 != result) return; 00277 00278 for (int i=0;i<TPL_NUM;i++) 00279 delete []m_Weight[i]; 00280 delete []m_EnergyBuffer; 00281 delete []m_EnergyMap; 00282 delete []m_Buffer; 00283 delete []m_MVseq; 00284 00285 } 00286 delete im; 00287 00288 VectorReal64 mvfeature(2*TPL_NUM); 00289 for (int x=0; x<2*TPL_NUM; x++) 00290 { 00291 mvfeature[x] = feature[x]; 00292 } 00293 Quid quid = vs->GetQuidFrame(fileId, src->FrameNr()); 00294 mHistogramTable->Add(quid, mvfeature); 00295 00296 ILOG_DEBUG("... done keyframe " << src->FrameNr()); 00297 00298 }

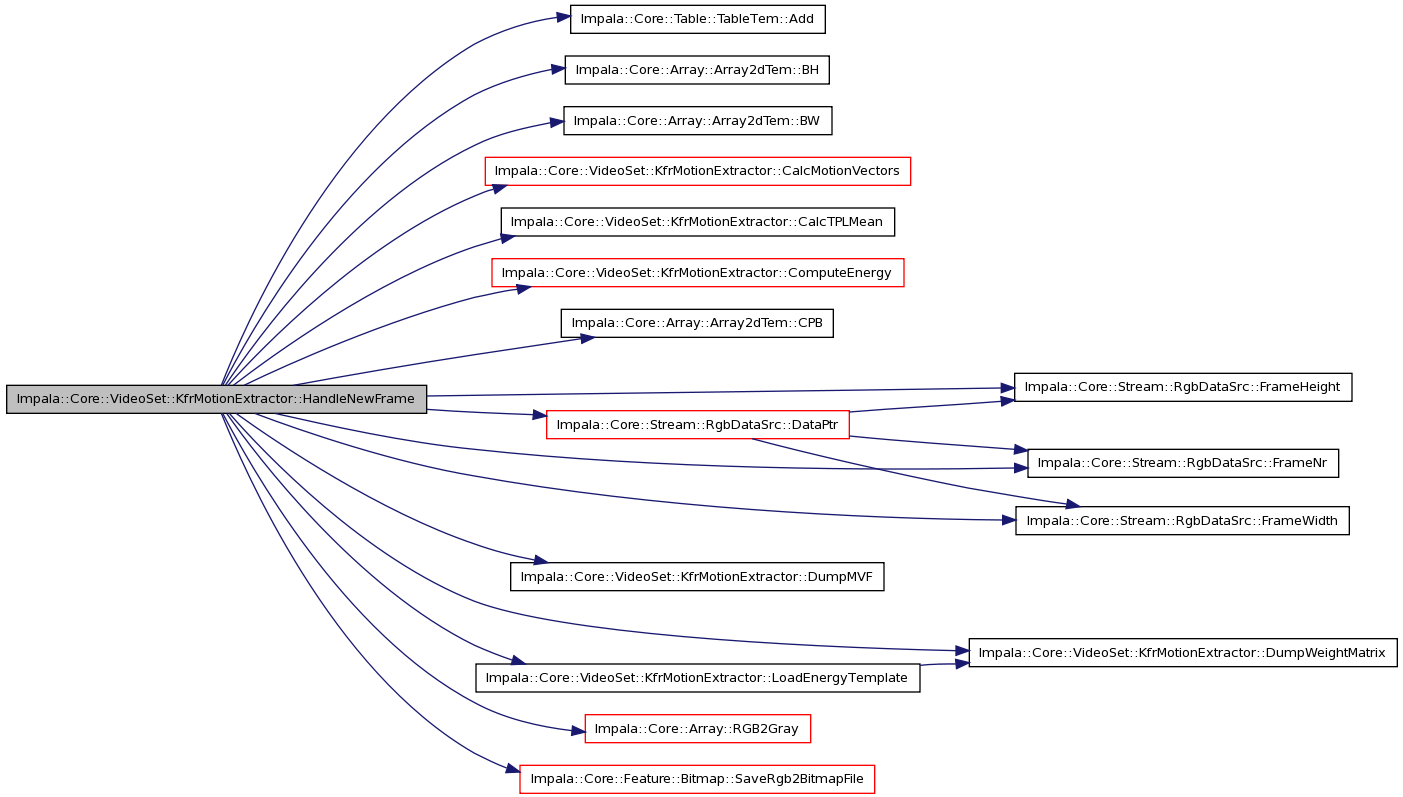

Here is the call graph for this function:
